Product introduction

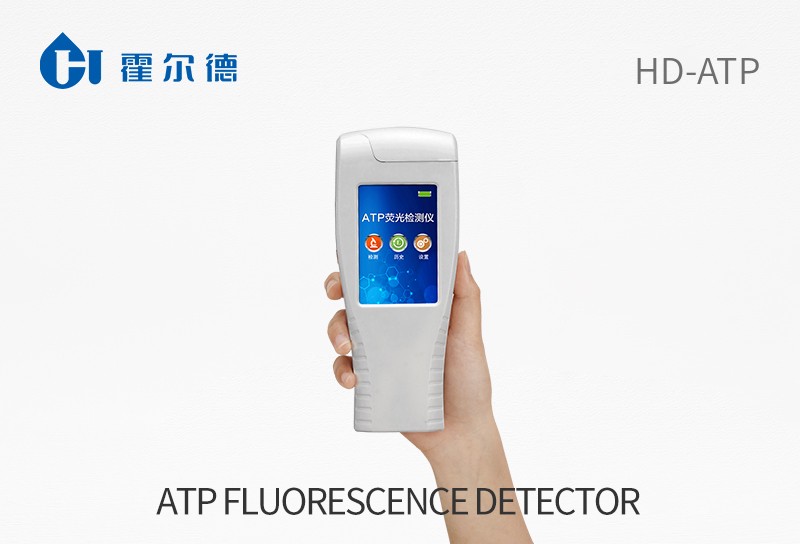

The device is a new upgrade with a large touch screen instead of a traditional button. ATP content was detected by biochemical reaction. ATP fluorescence detector was based on the principle of firefly luminescence, and ATP was rapidly detected by "luciferase - luciferin system". ATP can swab contains pyrolysis membranes of reagent, the ATP in the cell can be released, react with the specificity of the reagent containing enzymes, produce light, reoccupy glow fluorescent light meter test values, the number of microorganisms is proportional to the luminous value, because all creatures living cells contain a constant ATP, so ATP content can clearly show that the residual of microorganisms and other organisms in the sample, used to judge the health situation.

Instrument features

Practicability -- the upper and lower limits can be set according to the environmental testing requirements, so as to achieve rapid data evaluation and early warning, and rapid surface cleanliness screening.

High sensitivity -- 10-15 to 10-18 mol

Fast - conventional culture method 18-24h, and ATP only need a few seconds.

Feasibility -- there is a clear correlation between the number of microorganisms and the ATP contained in the microorganisms. By measuring the content of ATP, the microbial quantity in the reaction can be obtained indirectly

Operability - traditional training methods need to be operated by trained technicians in the laboratory; And ATP fast cleanliness detection operation is very simple, only simple training can be carried out by the general staff on-site operation.

Better experience -- the test sleeve adopts the flexible design of plug and pull, which can be cleaned regularly and used for a long time to extend the service life of the instrument.

The main parameters

1. Display: 3.5-inch high-precision graphic touch screen

2. Processor: 32-bit high-speed data processing chip

3. Detection accuracy: 1×10-18mol

4. Coliform: 1-106cfu

5. Detection range: 0 to 9999 RLUs

6. Detection time: 15 seconds

7. Detection of interference: ±5﹪ or ±5 RLUs

8. Operating temperature range: 5℃ to 40℃

9. Operating humidity range: 20-85 ‰

10. ATP recovery rate: 90-110%

11. Detection mode: RLU and coliform screening

12. Set 50 user ids

13. Result limits that can be set: 251

14.utomatic judgment of qualified and unqualified

15. automatic statistical pass rate

16. Built-in self-aligning light source

17. Self-check after starting for 30 seconds

18. Equipped with miniUSB interface, the results can be uploaded to the PC

19, equipped with special software to drive the U disk instead of the traditional CD

20. Instrument size (W×H×D) : 188 mm×77mm×37mm

21. Use rechargeable lithium batteries without battery replacement

22. Standby state (20℃) : 6 months

23. Chinese operation manual

24. Stable liquid luciferase

25. Wet integrated swab collection

The product application

ATP fluorescence detector is widely used in food, medicine and health, medicine, daily chemicals, papermaking, industrial water treatment, national defense, environmental protection, water administration, customs entry-exit quarantine and other law enforcement departments and other industries.

Product configuration

ATP fluorescence detector (hand-held) host, aluminum alloy suitcase, drive U disk, PC data line, data analysis software, English operation manual.
